Motorization Solutions Guide

Rectangle

Motor Information

Rectangle

Motors

Somfy 12V Motors,System II (R28),System II (CL32) (Parasol only),Auto Tilt,Somfy Rechargeable Motors,Ultra 30 WireFre...

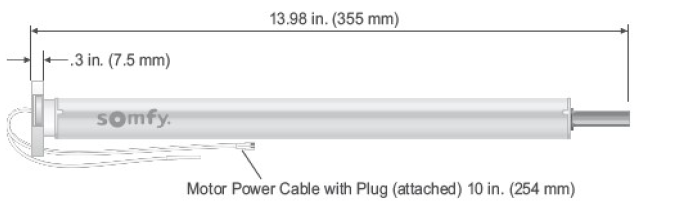

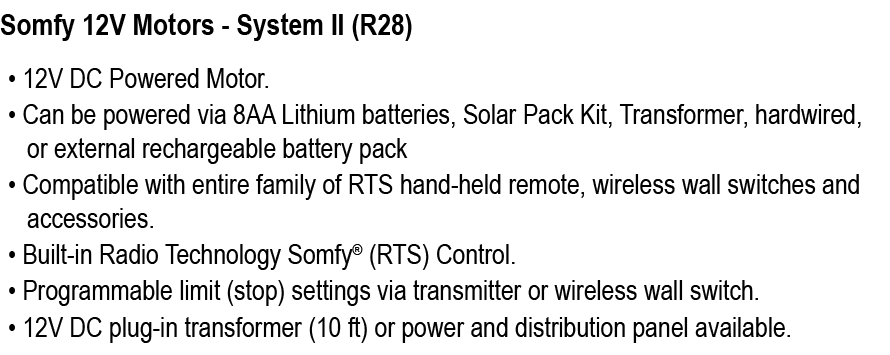

Somfy 12V Motors System II (R28)

Rectangle

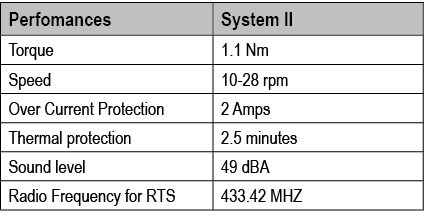

Perfomances,System II,Torque,1.1 Nm,Speed ,10 28 rpm,Over Current Protection,2 Amps,Thermal protection ,2.5 minutes,S...

Rectangle

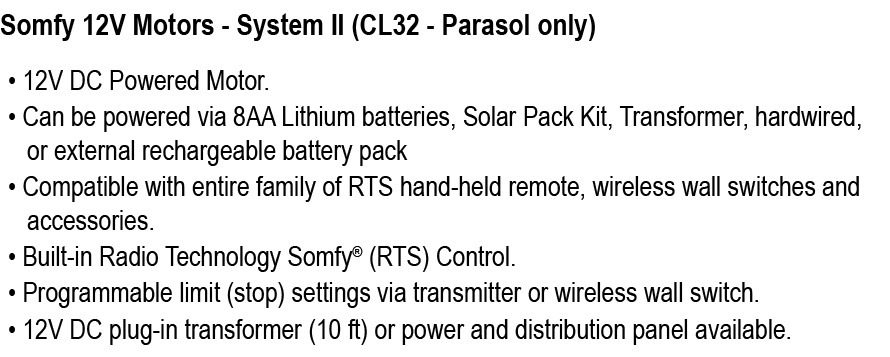

Somfy 12V Motors System II (CL32 Parasol only)

Rectangle

Rectangle

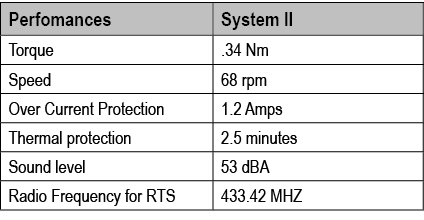

Perfomances,System II,Torque,.34 Nm,Speed ,68 rpm,Over Current Protection,1.2 Amps,Thermal protection ,2.5 minutes,So...

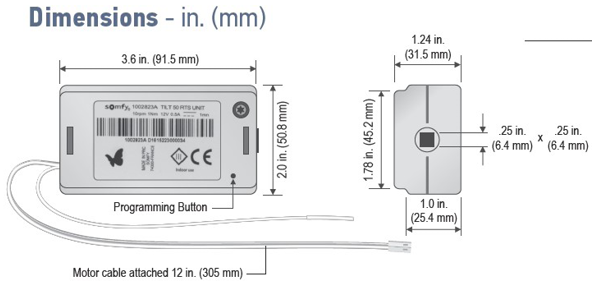

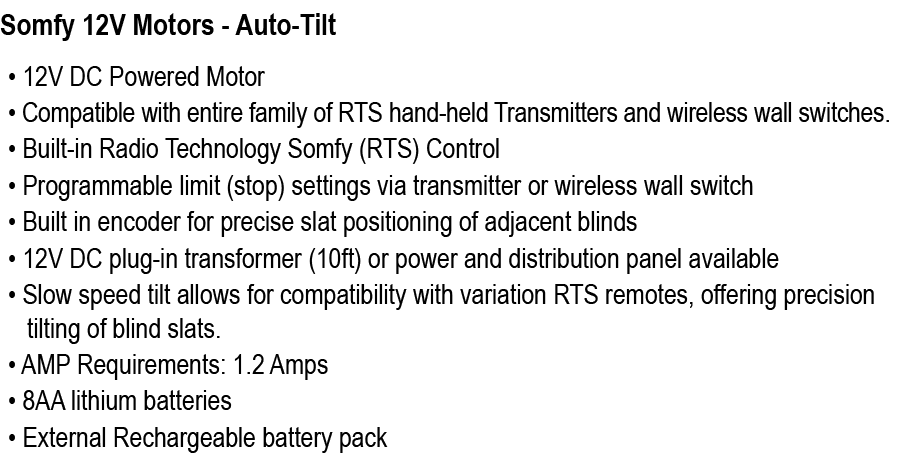

Somfy 12V Motors Auto Tilt

Rectangle

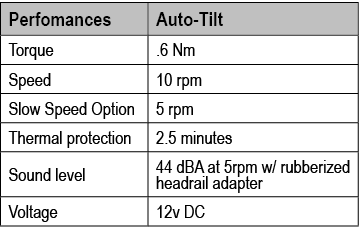

Perfomances,Auto Tilt,Torque,.6 Nm,Speed ,10 rpm,Slow Speed Option,5 rpm,Thermal protection ,2.5 minutes,Sound level ...

Rectangle

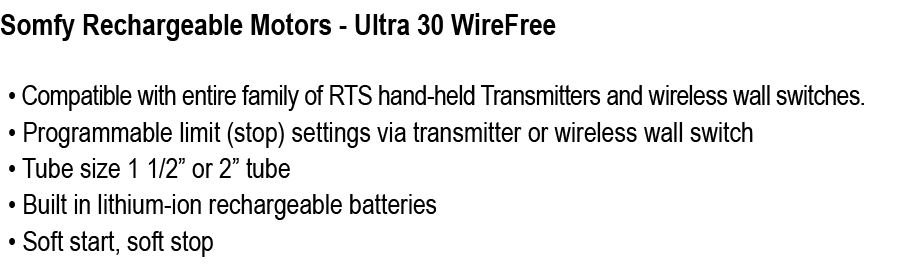

Somfy Rechargeable Motors Ultra 30 WireFree

Rectangle

Rectangle

Perfomances,Ultra 30 WireFree,Torque,2 Nm,Speed ,6 28 rpm (programmable),Thermal protection ,2.5 minutes,Sound level ...

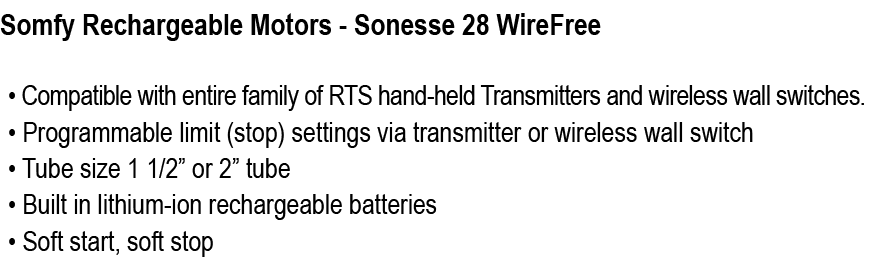

Somfy Rechargeable Motors Sonesse 28 WireFree

Rectangle

Rectangle

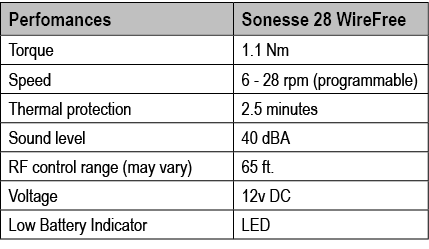

Perfomances,Sonesse 28 WireFree,Torque,1.1 Nm,Speed ,6 28 rpm (programmable),Thermal protection ,2.5 minutes,Sound le...

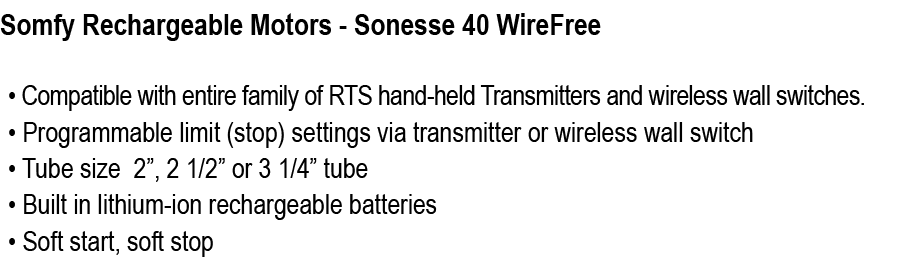

Somfy Rechargeable Motors Sonesse 40 WireFree

Rectangle

Rectangle

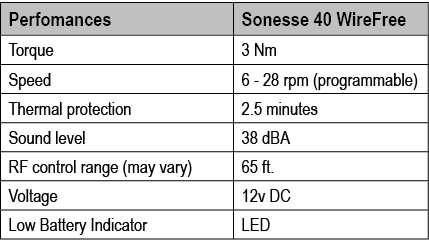

Perfomances,Sonesse 40 WireFree,Torque,3 Nm,Speed ,6 28 rpm (programmable),Thermal protection ,2.5 minutes,Sound leve...

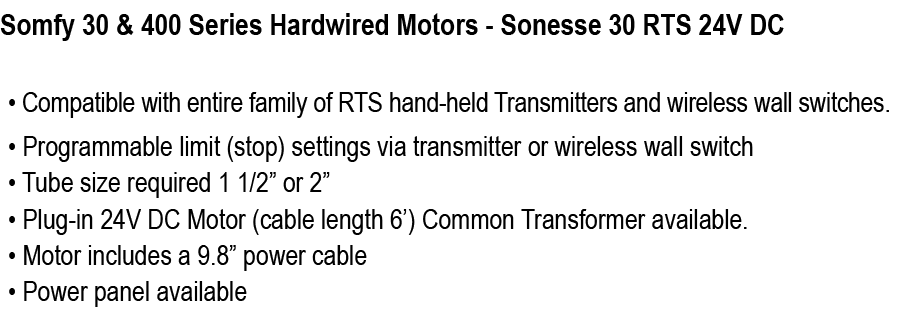

Somfy 30 & 400 Series Hardwired Motors Sonesse 30 RTS 24V DC

Rectangle

Rectangle

*** Motor Warranty will be voided if power wire is removed or cut ***

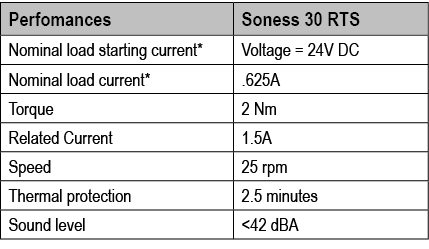

Perfomances,Soness 30 RTS,Nominal load starting current* ,Voltage = 24V DC,Nominal load current*,.625A,Torque,2 Nm,Re...

Rectangle

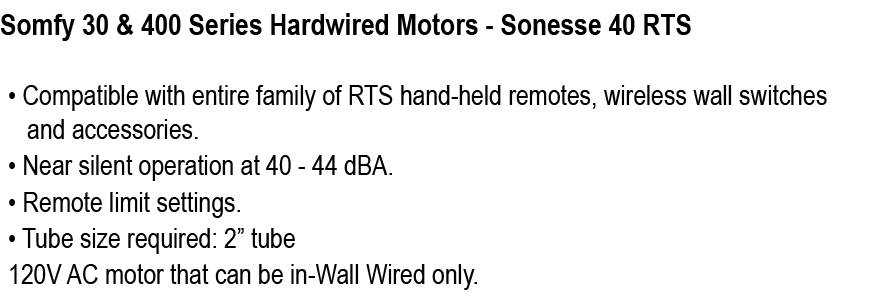

Somfy 30 & 400 Series Hardwired Motors Sonesse 40 RTS

Rectangle

Rectangle

Rectangle

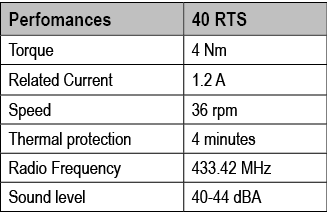

Perfomances,40 RTS,Torque,4 Nm,Related Current ,1.2 A,Speed ,36 rpm,Thermal protection ,4 minutes,Radio Frequency,433...

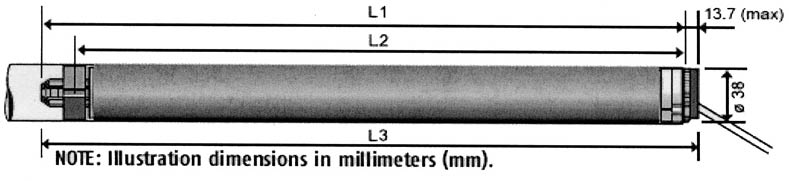

Dimensions,40452,L1,19.84 in. (504 mm),L2 ,18.90 in. (480 mm),L3 ,20.35 in. (517 mm),Cable Length ,11.5’

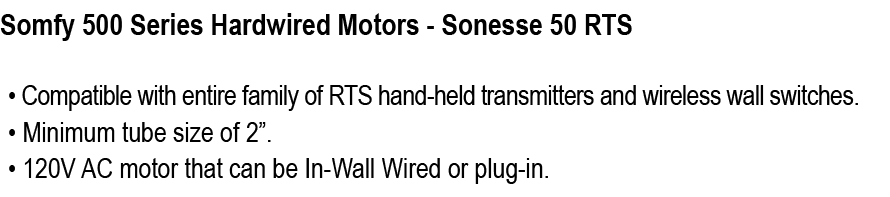

Somfy 500 Series Hardwired Motors Sonesse 50 RTS

Rectangle

Rectangle

Rectangle

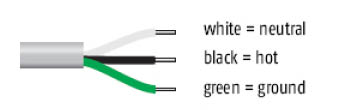

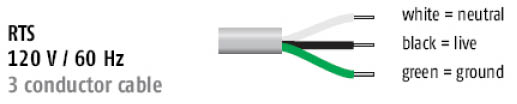

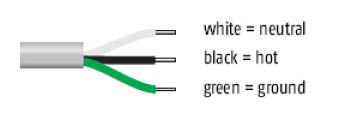

RTS 120V/60Hz 3 conductor cable

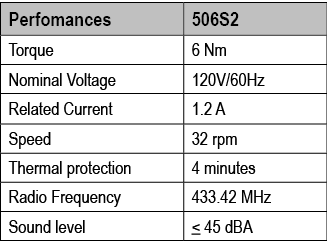

Perfomances,506S2,Torque,6 Nm,Nominal Voltage ,120V/60Hz,Related Current ,1.2 A,Speed ,32 rpm,Thermal protection ,4 m...

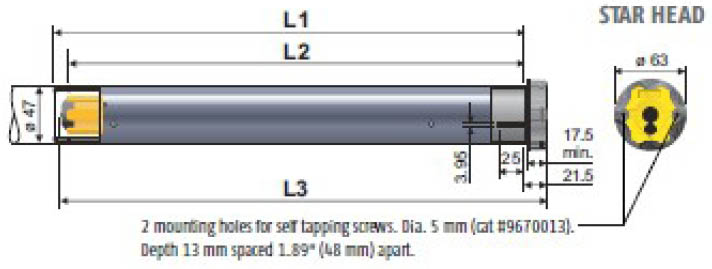

Dimensions,506S2,L1,25.7”,L2 ,25.2”,L3 ,26.2”,Cable Length ,6.5 ft

Somfy 500 Series Hardwired Motors Altus 50 RTS

Rectangle

Rectangle

Rectangle

RTS 120V/60Hz 3 conductor cable

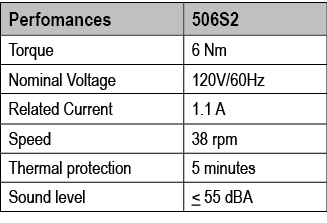

Perfomances,506S2,Torque,6 Nm,Nominal Voltage ,120V/60Hz,Related Current ,1.1 A,Speed ,38 rpm,Thermal protection ,5 m...

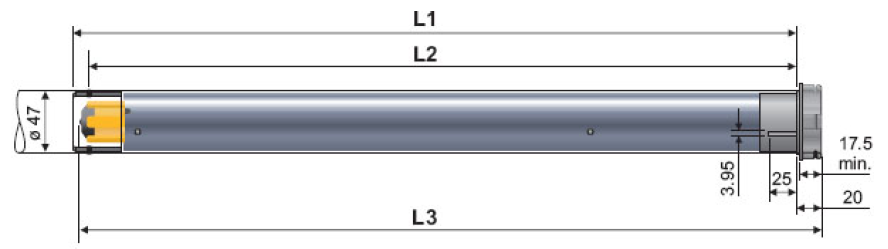

Dimensions,506S2,L1,23.82”,L2 ,23.23”,L3 ,24.02”,Cable Length ,6.5 ft

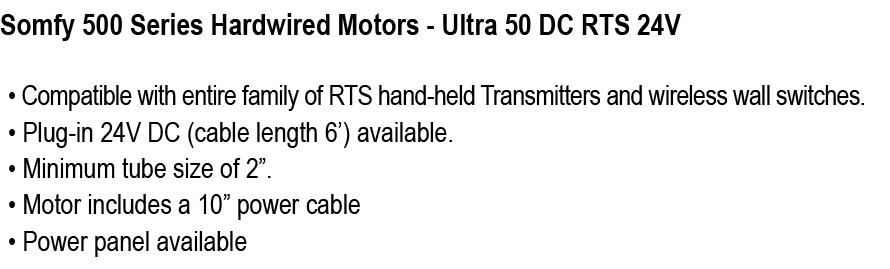

Somfy 500 Series Hardwired Motors Ultra 50 DC RTS 24V

Rectangle

Rectangle

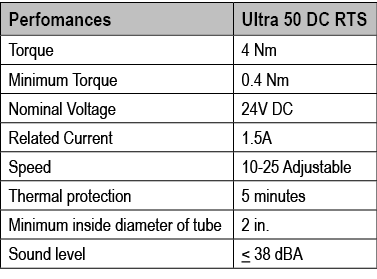

Perfomances,Ultra 50 DC RTS,Torque,4 Nm,Minimum Torque ,0.4 Nm,Nominal Voltage ,24V DC,Related Current ,1.5A,Speed ,1...

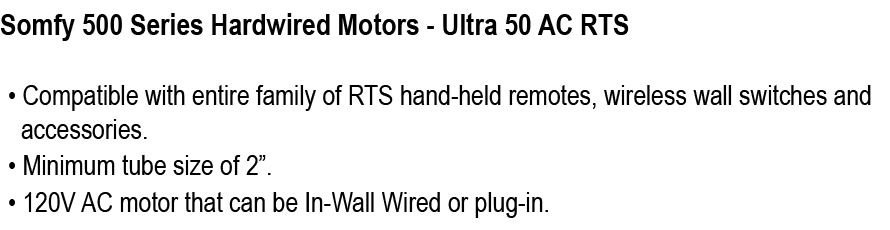

Somfy 500 Series Hardwired Motors Ultra 50 AC RTS

Rectangle

Rectangle

Dimensions,506S2,L1,31.7”,L2 ,31.3”,L3 ,32.3”,Cable Length ,9.8 ft

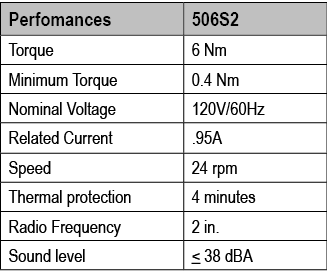

Perfomances,506S2,Torque,6 Nm,Minimum Torque ,0.4 Nm,Nominal Voltage ,120V/60Hz,Related Current ,.95A,Speed ,24 rpm,T...

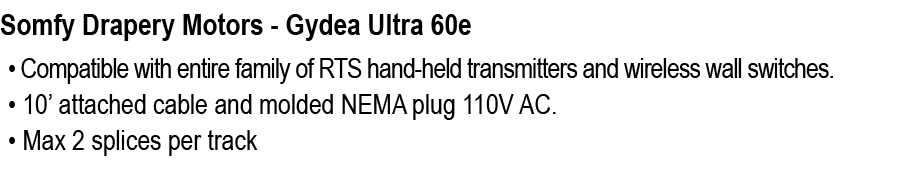

Somfy Drapery Motors Gydea Ultra 60e

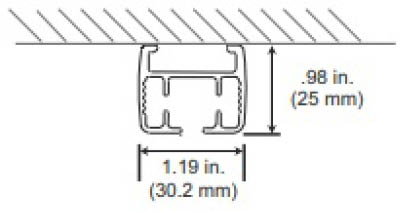

Track Dimensions (top view)

Rectangle

Somfy recommends 1 bracket by each pulley and 1 bracket every 24”. Additionally, 1 bracket should be placed on each s...

Rectangle

Motor Dimensions

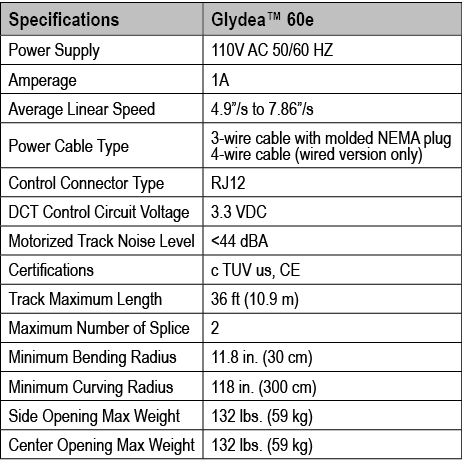

Specifications,Glydea™ 60e,Power Supply,110V AC 50/60 HZ,Amperage,1A,Average Linear Speed,4.9”/s to 7.86”/s,Power Cab...

Motor Modules

Rectangle

RTS (Included)

Rectangle

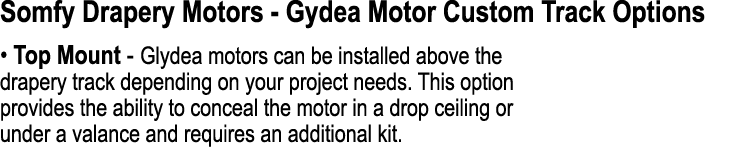

Somfy Drapery Motors Gydea Motor Custom Track Options • Top Mount Glydea motors can be installed above the drapery tr...

Rectangle

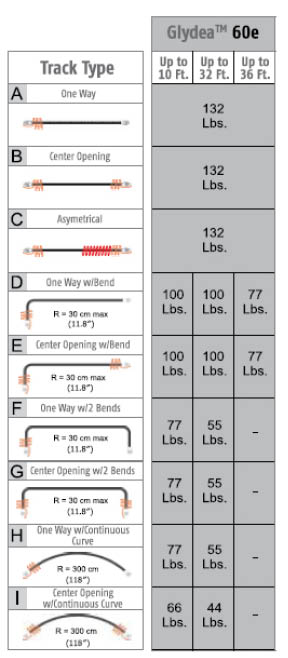

Track Types

Rectangle

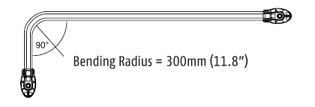

• Bends Tracks with bends are ideal for bay and corner windows. Track bends are available at a fixed radius of 11.8”....

Rectangle

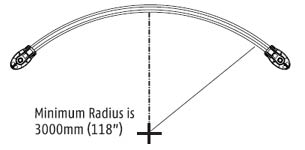

• Curves Custom curves are ideal for bow windows and other special applications. Templates are required for accuracy ...

Rectangle

• Glystro Conversion Kit The Glystro conversion kit is designed to allow adaptation of Somfy’s current Glydea drapery...

Rectangle

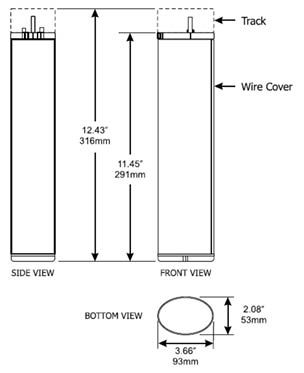

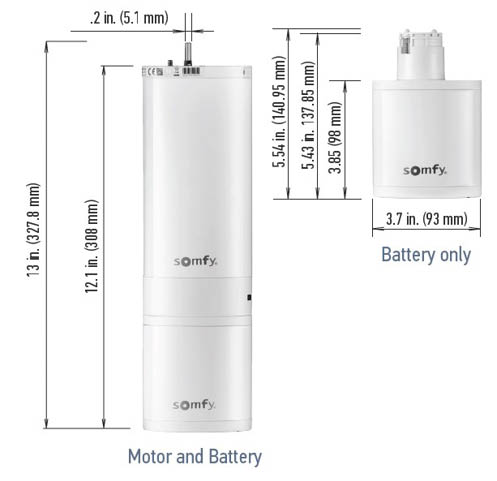

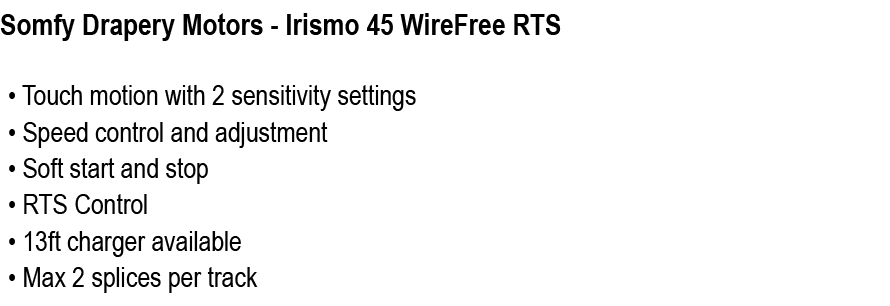

Somfy Drapery Motors Irismo 45 WireFree RTS

Rectangle

Specifications,Irismo 45 WireFree,Power Supply,26.5V LI ION,Average Linear Speed,4.9 in./s 7.86 in./s,Battery Pack,29...

Rectangle

Rectangle

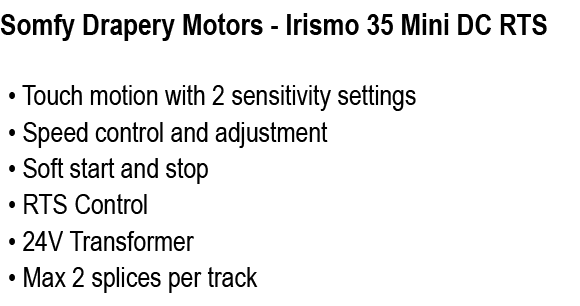

Somfy Drapery Motors Irismo 35 Mini DC RTS

Rectangle

Rectangle

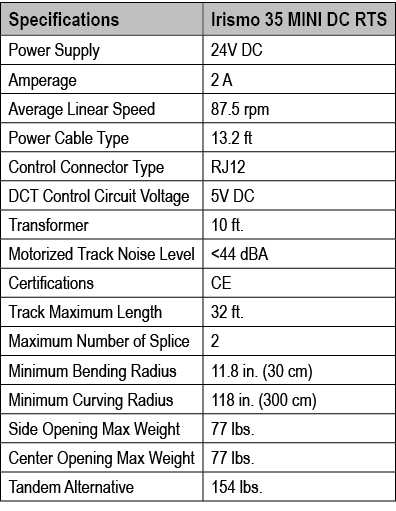

Specifications,Irismo 35 MINI DC RTS,Power Supply,24V DC,Amperage,2 A,Average Linear Speed,87.5 rpm,Power Cable Type,...

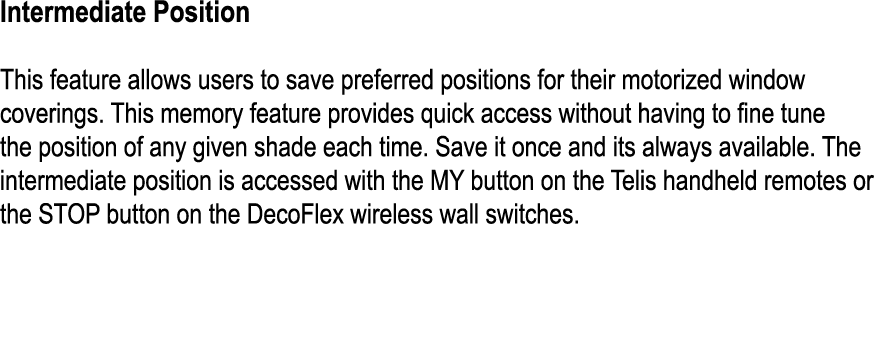

Intermediate Position This feature allows users to save preferred positions for their motorized window coverings. Thi...

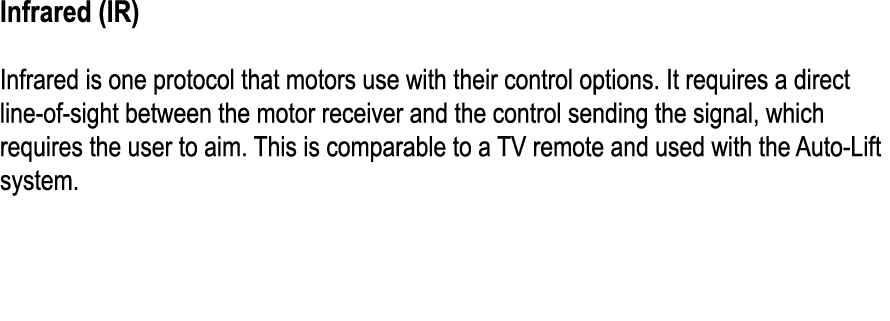

Infrared (IR) Infrared is one protocol that motors use with their control options. It requires a direct line of sight...

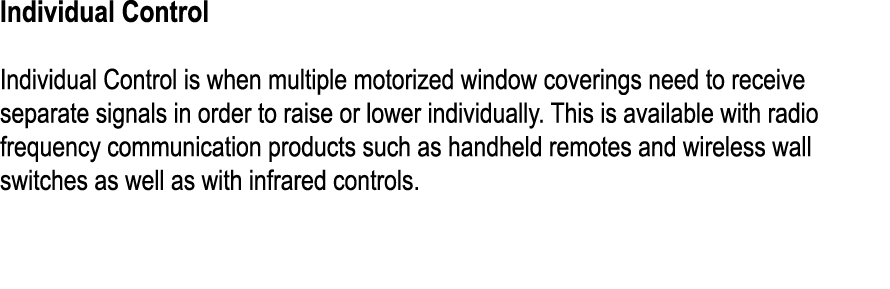

Individual Control Individual Control is when multiple motorized window coverings need to receive separate signals in...

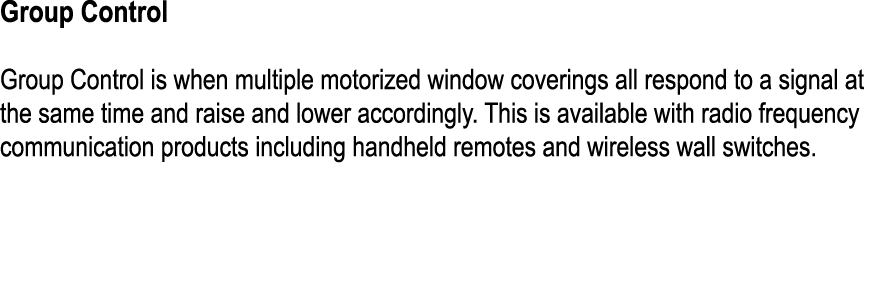

Group Control Group Control is when multiple motorized window coverings all respond to a signal at the same time and ...

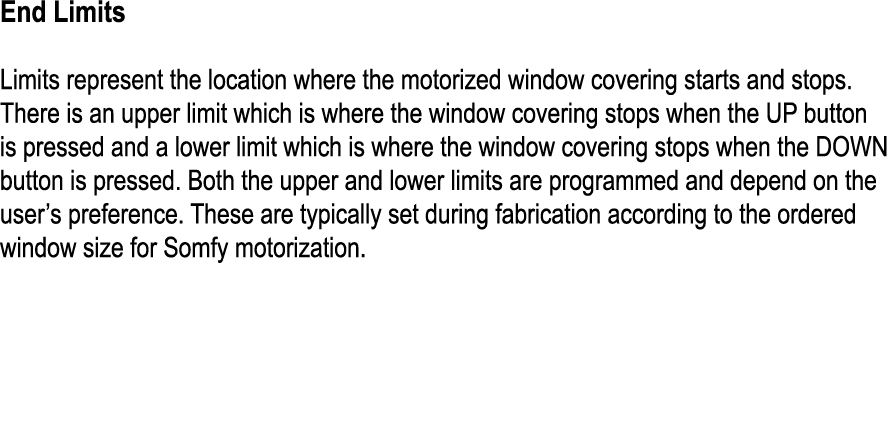

End Limits Limits represent the location where the motorized window covering starts and stops. There is an upper limi...

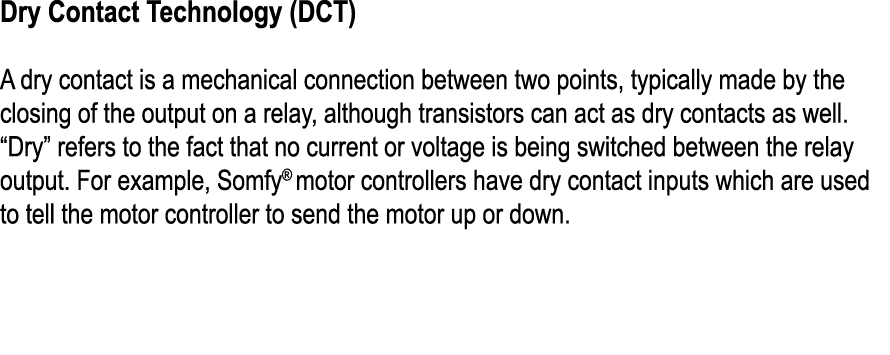

Dry Contact Technology (DCT) A dry contact is a mechanical connection between two points, typically made by the closi...

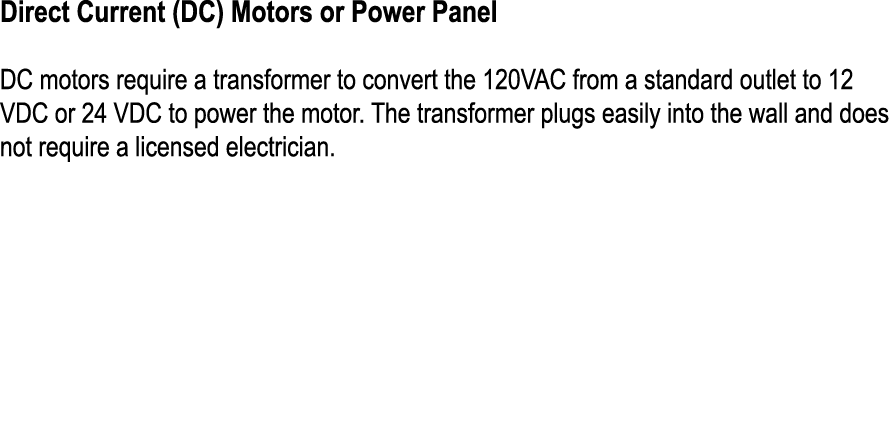

Direct Current (DC) Motors or Power Panel DC motors require a transformer to convert the 120VAC from a standard outle...

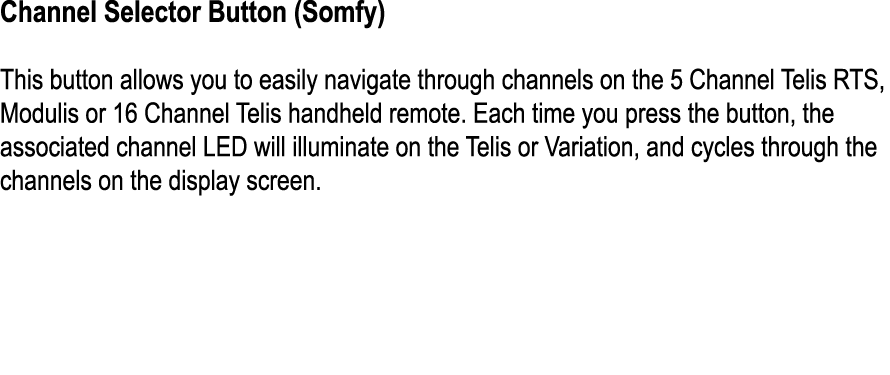

Channel Selector Button (Somfy) This button allows you to easily navigate through channels on the 5 Channel Telis RTS...

Channel Button Channel buttons are buttons used for the Somfy DecoFlex™ WireFree RTS Wall Switch. Each button indicat...

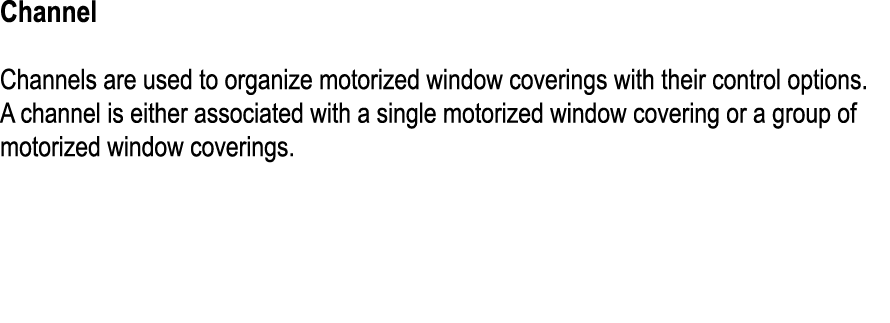

Channel Channels are used to organize motorized window coverings with their control options. A channel is either asso...

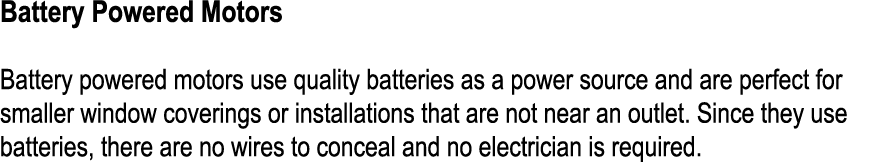

Battery Powered Motors Battery powered motors use quality batteries as a power source and are perfect for smaller win...
